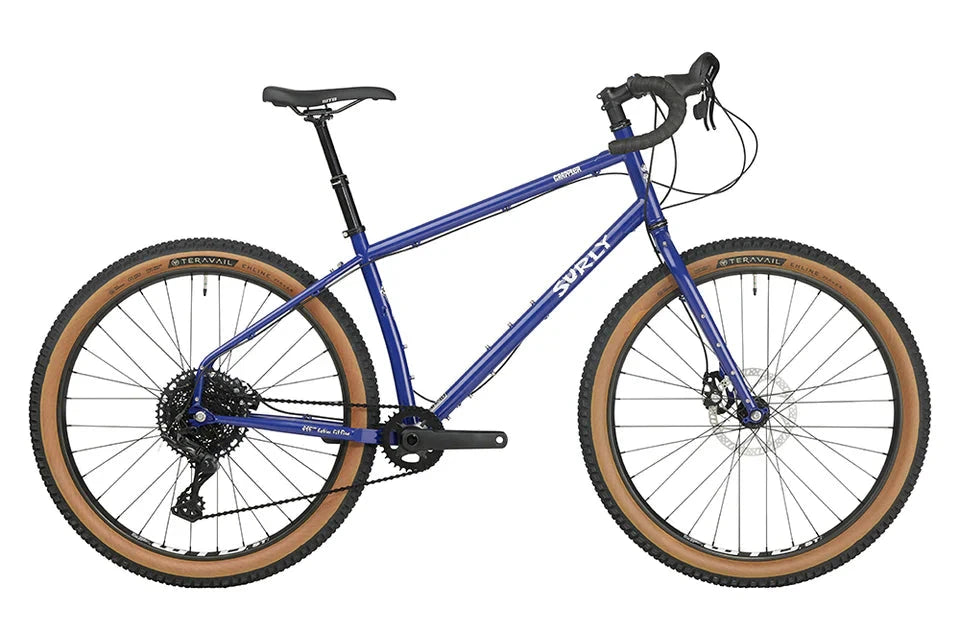

THE GRAPPLER

A Trail Bike Tailored for Drop Bars

Off-road enthusiasts have been Frankensteining drop bars onto trail bikes for decades, so we designed the Grappler to scratch that itch with a little more precision. Engineered first and foremost around a stable and comfortable drop-bar hand position, its trail-ready geo provides a spirited ride on mixed terrain.

Cleared for girthy tires and decorated with an array of mounts for hauling your daily provisions and overnight gear, the Grappler is ready to take you and your paraphernalia down that overgrown fire road for an extrasensory experience. There’s nothing to be afraid of. Probably.

FEATURES

• Featuring Surly’s versatile Gnot-Boost spacing, allowing riders to run 142mm or Boost 148mm rear hubs; thru-axles; stealth dropper post routing; non-suspension corrected
• Custom dropouts ready to run single-speed or internally geared hub setups
• Seatstay-mounted bottle bosses, plus three-pack mounts at the top and bottom of the down tube
• Clearance for 27.5 x 2.8” or 29 x 2.1″ tires (with or without fenders)

FRAMESET

Frame 100% Chromoly Steel frame, Natch tubing, double-butted main triangle, TIG welded, E.D. coated
Fork 100% Chromoly Steel fork, Natch tubing, double-butted tapered fork blades, TIG welded, E.D. coated


Specifications

Seatpost Clamp Surly Stainless 33.1
Headset Cane Creek 40
Brakes Tektro Mira MD-C400
Brake Levers AdventX Dual Control Levers
Rotors Tektro 180/160
Shifters Microshift SB-M100A, AdventX Dual Control Levers
Stem Promax DA-296, 31.8 or Kalloy AS-007
Handlebar Salsa Cowchipper 31.8
Grip/Tape Cork Black
Saddle WTB Volt 142
Seatpost TransX YSP15, 30.9, 100mm travel
Crankset Samox 2PCS Boost 32t
Bottom Bracket Samox BSA 24
Front Derailleur N/A
Rear Derailleur Microshift M6205
Cog or cogset Microshift 11-48t
Chain KMC X10 Econo Black or NP/BLK
Front Hub Novatec 15x110mm, 32h
Rear Hub Novatec 12x148mm, 32h
Rims WTB ST i40 TCS
Tires Teravail Ehline, 27.5 x 2.5″, 60tpi
